Pell Hydrashear Power Operated Cable Cutters

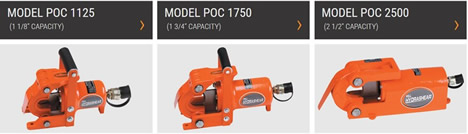

Models POC1125 | POC1750 | POC2500

The Pell Hydrashear Power Operated Cable Cutters are unique and field flexible. The Pell Hydrashear Power Operated Cable Cutters Models POC1125, POC1750, POC2500 can harness the main power sources available to any General Contractor, Electrician or Plumber.  It can connect to any gasoline, electric, hand, battery or pneumatic air operated hydraulic pump capable of developing 10,000 p.s.i.  Pumps are attached to the Pell Hydrashear Power Operated Cable Cutters Cable Cutter units with an appropriate hydraulic pressure hose.

Replacement Parts: POC-1125 Parts    POC-1750 Parts     POC-2500 Parts

POC 1125
Pell Hydrashear 1-1/8" POC  1125 Cable Cutter
POC 1750 Skid Complete
Pell Hydrashear 1-1/8" Power Operated Cable Cutter POC 1125

Part
Number
Model
Capacity
Weight
Price
Add to Cart
POC1125-80
Cutting Head
1-1/8" Cable
24 lbs
$1,954
Call to Order
POC1125-81-E
Electric Pump
1-1/8" Cable
95 lbs
--
Call to Order
POC1125-81-A
Air Pump
1-1/8" Cable
100 lbs
--
Call to Order
POC1125-82
Hose
4 lbs
$199
POC1125-83
Base Plate
58 lbs
$335
POC1125-94-Electric
Complete Unit
1-1/8" Cable
220 lbs
$6,634
Call to Order
POC1125-94-Air
Complete Unit
1-1/8" Cable
225 lbs
$7,070
Call to Order

* Complete Unit includes: Head, Pump (Electric or Air), Hose, Base Plate
Ships on a Skid: 210/215 lbs 48"x40"x31"

Minimum Internet Order $150 | Prices and Descriptions Subject To Change Without Notice

POC 1750
Pell Hydrashear 1-3/4" POC  1750 Cable Cutter
POC 1750 Skid Complete
Pell Hydrashear 1-3/4" Power Operated Cable Cutter POC 1750

Part
Number
Model
Capacity
Weight
Price
Add to Cart
POC1750-80
Cutting Head
1-3/4" Cable
49 lbs
$2,399
Call to Order
POC1750-81-E
Electric Pump
1-3/4" Cable
95 lbs
--
Call to Order
POC1175-81-A
Air Pump
1-3/4" Cable
100 lbs
--
Call to Order
POC1750-82
Hose
4 lbs
$199
POC1750-83
Base Plate
58 lbs
$335
POC1750-94-Electric
Complete Unit
1-3/4" Cable
235 lbs
$7,078
Call to Order
POC1750-94-Air
Complete Unit
1-3/4" Cable
240 lbs
$7,465
Call to Order

* Complete Unit includes: Head, Electric Pump, Hose, Base Plate
Ships on a Skid: 235/240 Lbs 48"x40"x31"

Minimum Internet Order $150 | Prices and Descriptions Subject To Change Without Notice

POC 2500
Pell Hydrashear 2-1/2"  Power Operated Cable Cutter POC 2500
POC 1750 Skid Complete
Pell Hydrashear 2-1/2" Power Operated Cable Cutter POC 2500

Part
Number
Model
Capacity
Weight
Price
Add to Cart
POC2500-80
Cutting Head
2-1/2" Cable
82 lbs
$3,229
Call to Order
POC2500-81-E
Electric Pump
95 lbs
--
Call to Order
POC-2500-81-A
Air Pump
100 lbs
--
Call to Order
POC2500-82
Hose
$199
POC2500-83
Base Plate
$335
POC2500-94-Electric
Complete Unit
290 lbs
$7,908
Call to Order
POC2500-94-Air
Complete Unit
295 lbs
$8,161
Call to Order

* Complete Unit includes: Head, Electric Pump, Hose, Base Plate
Ships on a Skid: 290/295 Lbs 48"x40"x31"

Minimum Internet Order $150 | Prices and Descriptions Subject To Change Without Notice

Pell Power Operated Cable Cutters Parts Diagram
Pell Hydrashear POC-1125 Power Operated Cable Cutter Replacement Parts

Part Number
Description
Weight
Price
Add to Cart
POC-1125-1
Die Set
1 lbs
$106
POC-1125-4
Blade
1 lbs
$63
POC-1125-5
Blade Pin
-
$3
POC-1125-6
Hinge Pin w/#39
.50 lbs
$29
POC-1125-R7
Ram
2.2 lbs
$121
POC-1125-R8
Ram Collar
1 lbs
$70
POC-1125-10
Ram Retracting Spring
1 lbs
$25
POC-1125-13
Ram Retaining Screw
-
$4
POC-1125-14
Ram Cup Leather and O-Ring
-
$43
POC-1125-15
Ram Cup Leather Retainer
2.6 lbs
$14
POC-1125-33
Latch
-
$59
POC-1125-R35
Ram Collar Screws
-
$4
POC-1125-R36
Handle Assembly
-
$58
POC-1125-38
Latch Pin with #39
.4 lbs
$23
POC-1125-39
Snap Rings (4)
-
$10
POC-1125-40
Guard Screws
-
$4
POC-1125-42
Guard Plate
-
$8
POC-1125-43
Shear Blade Holder
2.8 lbs
$129
POC-1125-55
1/4" NPT Street Elbow
-
Call to Order
POC-1125-59
1/4" NPT Directional Valve
-   Call to Order

Weights are estimated nominal amounts

Minimum Internet Order $150 | Prices and Descriptions Subject To Change Without Notice

Pell Hydrashear POC-1750 Power Operated Cable Cutter Replacement Parts

Part Number
Description
Weight
Price
Add To CArt
POC-1750-1
Die Set
1 lbs
$171
POC-1750-4
Blade
1 lbs
$78
POC-1750-5
Blade Pin
-
$3
POC-1750-6
Hinge Pin w/#39
1.4 lbs
$57
POC-1750-R7
Ram
5 lbs
$165
POC-1750-R8
Ram Collar
1.5 lbs
$149
POC-1750-10
Ram Retracting Spring
1 lbs
$57
POC-1750-13
Ram Retaining Screw
-
$5
POC-1750-14
Ram Cup Leather and O-Ring
-
$57
POC-1750-15
Ram Cup Leather Retainer
5.5 lbs
$17
POC-1750-33
Latch
2.4 lbs
$79
POC-1750-R35
Ram Collar Screws
-
$5
POC-1750-R36
Handle Assembly
2.12 lbs
$79
POC-1750-38
Latch Pin with #39
1.2 lbs
$41
POC-1750-39
Snap Rings (4)
-
$10
POC-1750-40
Guard Screws
-
$4
POC-1750-42
Guard Plate
-
$8
POC-1750-43
Shear Blade Holder
5.5 lbs
$167
POC-1750-55
1/4" NPT Street Elbow
-
$16
POC-1750-59
1/4" NPT Directional Valve
-
$36

Weights are estimated nominal amounts

Minimum Internet Order $150 | Prices and Descriptions Subject To Change Without Notice

Pell Hydrashear POC-2500 Power Operated Cable Cutter Replacement Parts

Part Number
Description
Weight
Price
Add To Cart
POC-2500-1
Die Set
2.3 lbs
$168
POC-2500-4
Blade
1.18 lbs
$102
POC-2500-5
Blade Pin
-
$3
POC-2500-6
Hinge Pin w/#39
1.6 lbs
$64
POC-2500-R7
Ram
1 lbs
$412
POC-2500-R8
Ram Collar
2 lbs
$388
POC-2500-10
Ram Retracting Spring
1.2 lbs
$150
POC-2500-13
Ram Retaining Screw
-
$11
POC-2500-14
Ram Cup Leather and O-Ring
-
$84
POC-2500-15
Ram Cup Leather Retainer
-
$24
POC-2500-33
Latch
7.45 lbs
$300
POC-2500-R35
Ram Collar Screws
-
$7
POC-2500-R36
Handle Assembly
-
N/A
POC-2500-38
Latch Pin with #39
-
$64
POC-2500-39
Snap Rings (4)
-
$14
POC-2500-40
Guard Screws
-
$4
POC-2500-42
Guard Plate
-
$23
POC-2500-43
Shear Blade Holder
9.6 lbs
$500
POC-2500-55
1/4" NPT Street Elbow
-
$16
POC-2500-59
1/4" NPT Directional Valve
-
$36

Weights are estimated nominal amounts

Minimum Internet Order $150 | Prices and Descriptions Subject To Change Without Notice
