Pell
Hydraulic Hydraulic Chain Cutter |
|
Hydraulic Chain Cutter also cuts Re-Bar and Strand Wire |
Maximum Capacity |
Approximate Cutting Time |
1/2" Prestressed Concrete Strand |
3 seconds |
1/2" Round chain - mild steel |
4 seconds |
5/8" Reinforcing Bar |
4 seconds |
| |
|
Weight: |
12 lbs |
|
The Pell Hydraulic Chain Cutter Requires an External Power Source. Can use any electric,
gasoline, hand battery, or air operated hydraulic pump capable
of developing 10,000 psi and having free flow return through
the pressure line.
Specify if being used for round chain. Slight alteration
is required. |
|
Part Number |
Description |
S-80 |
Cutting Head |
S-82 |
10 ft Hydraulic Hose |
S-90 |
Pistol Grip Handle
with switch and 10' connecting cord |
S-94 |
Model S-94 Complete
with pistol Grip Handle Remote Control Switch 10' Hydraulic
Hose Electrically driven Hydraulic Pump |
S-81 |
Pump Only
Electrically Driven Hydraulic Pump Powered
by 1 hp 115/230 volt AC Motor Capable of Developing 10,000
psi and having a Free Return through the Pressure Line
|
|
|
Model

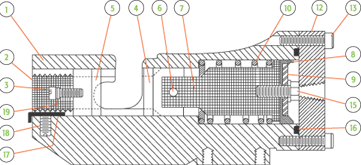

S Hydraulic Chain Cutter Replacement Parts |
Part Number |
Description |
S-2 |
Adjusting Screw |
S-3 |
Blade Holding Screw |
S-4-C |
Rear Blade (moving blade) for Chain |
S-4-R |
Rear Blade (moving blade) for Re-Bar |
S-4-S |
Rear Blade (moving blade) for Strand |
S-5-C |
Front Blade for Chain |
S-5-R |
Front Blade for Re-Bar |
S-5-S |
Front Blade for Strand |
S-6 |
Blade Pin |
S-7 |
Ram |
S-8 |
Cup Leather |
S-9 |
Cup Leather Retainer |
S-10 |
Retracting Spring |
S-12 |
End Plate |
S-13 |
End Plate Screw |
S-15 |
Ram Retainer Screw |
S-16 |
O-Ring |
S-17 |
Locking Wedge |
S-18 |
Set Screw |
S-19 |
Spring Washers (2) |
|
|
