Fixed Spreader
Beam
|
Model 30 |
|
|
|

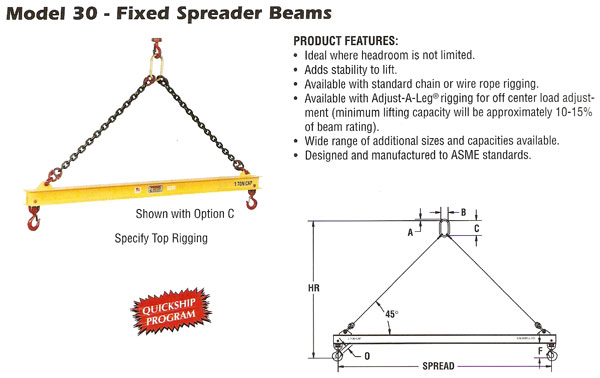

The Model 30 Fixed Spreader Lifting Beam is designed to use when headroom is not limited. This single tonnage sized lifter can can add stability to a lift. Flexible pick point allow for standard chain or wire rope rigging. In addition, with the use of Adjust-A-Leg® system allows for off center load adjustment. With the Adjust-A-Leg® the minimum lifting capacity will be approximately 10 to 15% of the beam rating. Available from 2 to 40 tons and from 4 to 24 feet spread (refer to tables). Designed and manufactured to ASME standards.
Ask about the many options such as:
Option C - with Chain Top Rigging From Beam to Crane Hook
Option W - Wire Rope Top Rigging from Beam to Crane Hook
Option A - Adjust_A_Leg® Sling Top Rigging for off center Load Adjustment
(not included in QUICKSHIP Program). |
|
|
Model |
Capacity |
Spread in Feet |
Headroom |
Weight |
30-2-4 |
2 ton |
4 |
34" |
45 |
30-2-6 |
2 ton |
6 |
46" |
60 |
30-2-8 |
2 ton |
8 |
58" |
82 |
30-2-10 |
2 ton |
10 |
70" |
95 |
30-2-12 |
2 ton |
12 |
82" |
115 |
30-2-16 |
2 ton |
16 |
106" |
225 |
30-2-20 |
2 ton |
20 |
132" |
408 |
30-2-24 |
2 ton |
24 |
156" |
445 |
| |
|
|
|
|
Model |
Capacity |
Spread in Feet |
Headroom |
Weight |
30-5-4 |
5 ton |
4 |
37" |
62 |
30-5-6 |
5 ton |
6 |
49" |
78 |
30-5-8 |
5 ton |
8 |
61" |
100 |
30-5-10 |
5 ton |
10 |
73" |
117 |
30-5-12 |
5 ton |
12 |
83" |
168 |
30-5-16 |
5 ton |
16 |
110" |
305 |
30-5-20 |
5 ton |
20 |
134" |
435 |
30-5-24 |
5 ton |
24 |
158" |
661 |
| |
|
|
|
|
Model |
Capacity |
Spread in Feet |
Headroom |
Weight |
30-10-4 |
10 ton |
4 |
41" |
100 |
30-10-6 |
10 ton |
6 |
53" |
122 |
30-10-8 |
10 ton |
8 |
64" |
156 |
30-10-10 |
10 ton |
10 |
77" |
180 |
30-10-12 |
10 ton |
12 |
86" |
240 |
30-10-16 |
10 ton |
16 |
113" |
380 |
30-10-20 |
10 ton |
20 |
138" |
532 |
30-10-24 |
10 ton |
24 |
163" |
915 |
| |
|
|
|
|
Model |
Capacity |
Spread in Feet |
Headroom |
Weight |
30-15-4 |
15 ton |
4 |
43" |
126 |
30-15-6 |
15 ton |
6 |
55" |
155 |
30-15-8 |
15 ton |
8 |
65" |
185 |
30-15-10 |
15 ton |
10 |
80" |
242 |
30-15-12 |
15 ton |
12 |
92" |
270 |
30-15-16 |
15 ton |
16 |
116" |
420 |
30-15-20 |
15 ton |
20 |
140" |
665 |
30-15-24 |
15 ton |
24 |
167" |
953 |
| |
|
|
|
|
Model |
Capacity |
Spread in Feet |
Headroom |
Weight |
30-20-4 |
20 ton |
4 |
46" |
170 |
30-20-6 |
20 ton |
6 |
58" |
200 |
30-20-8 |
20 ton |
8 |
69" |
233 |
30-20-10 |
20 ton |
10 |
82" |
315 |
30-20-12 |
20 ton |
12 |
94" |
350 |
30-20-16 |
20 ton |
16 |
118" |
540 |
3-20-20 |
20 ton |
20 |
140" |
775 |
30-20-24 |
20 ton |
24 |
170" |
1341 |
| |
|
|
|
|
Model |
Capacity |
Spread in Feet |
Headroom |
Weight |
--- |
30 ton |
4 |
--- |
--- |
30-30-6 |
30 ton |
6 |
60" |
285 |
30-30-8 |
30 ton |
8 |
70" |
402 |
30-30-10 |
30 ton |
10 |
83" |
440 |
30-30-12 |
30 ton |
12 |
95" |
530 |
30-30-16 |
30 ton |
16 |
120" |
888 |
30-30-20 |
30 ton |
20 |
145" |
1390 |
--- |
30 ton |
24 |
--- |
--- |
| |
|
|
|
|
Model |
Capacity |
Spread in Feet |
Headroom |
Weight |
--- |
--- |
4 |
--- |
--- |
30-40-6 |
40 ton |
6 |
65" |
563 |
30-40-8 |
40 ton |
8 |
77" |
695 |
30-40-10 |
40 ton |
10 |
89" |
781 |
30-40-12 |
40 ton |
12 |
102" |
1058 |
30-40-16 |
40 ton |
16 |
127" |
1364 |
--- |
40 ton |
20 |
--- |
--- |
--- |
40 ton |
24 |
--- |
--- |
| |
|
|
|
|
|
| |
| |
|
|
|
|
|
|
|
| |
