Oil Spill Hot Wax Spray Wand
Used For Spreading Hot Wax Paraffin Emulsions Materials on Oil Sprills

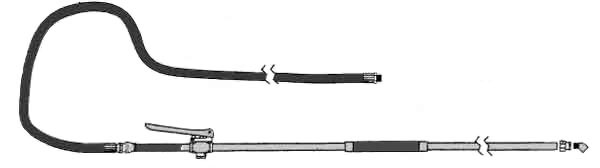

 Spray Wand
SW-1
Hot Wax Emulsions Oil Spill Spray Wand
Complete Assembly (less hose)
$256
Add To Cart

Used For Spreading Hot Wax Paraffin Emulsions Materials on Oil Sprills. The Hot Wax desolves the oil into a thick flouting paste that can then be easily raked away and removed for the liquid surfase. The Steel Sprayer Pipe and Hot Handle Assembly is Made In America. The Spray Wand with Hot Handle is made from high quality components. Overall length is 5 ft.  7 Gallons per minute.  Viton Seal O'Ring Valve.  150 PSI rated. Up to 400 degree valve packing. Steel Pipe components and Brass Spray Nozzle (1/4" 8010).  High Temperature Hose [shown below] or Teflon Tubed Stainless Steel Hose for Hot Paraffin Wax [not shown] are optional and available in any length.  The Air Hose is used to blow out remaining Hot Wax Emulsion Materials after use. Due to intense high temperatures. Air Quick Coupler disconnects seals are not suitable with this devise.
Important Note: Sprayer not designed to exceed 400°F degrees Hot Materials Emulsion usage.  Always wear protective face shields, gloves and clothing when handling hot emulsion material devises.  Also, be sure to blow out the wand and hose assemblies with high pressure air after each use. Be sure to complete the maintenance prior to emulsions cool down.
Web videos on Oil Spill Clean Up with Wax. [ Link ]
Replacment Accessories

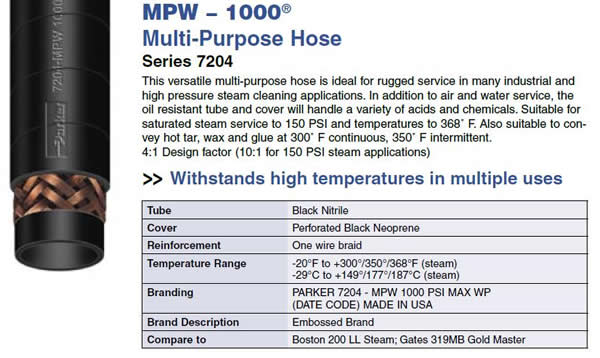

Parker Hot Wax, Tar, Glue Braided Spray Hose
High Temperature Hot Wax Asphalt Tack Oil Hose Assemblies
High Temperature Hot Wax
Steel Braided Spray Hose Assemblies

SHA1210
High Temperature Spray Hose Assembly
1/2" x 10 ft Male Pipe Rigid Both Ends.
-20°F to +300/350°F | Hot Tar | Wax | Glue

SHA1212
High Temperature Spray Hose Assembly
1/2" x 12 ft Male Pipe Rigid Both Ends.
-20°F to +300/350°F | Hot Tar | Wax | Glue
SHA1216
High Temperature Spray Hose Assembly
1/2" x 16 ft Male Pipe Rigid Both Ends.
-20°F to +300/350°F | Hot Tar | Wax | Glue
SHA1220
High Temperature Spray Hose Assembly
1/2" x 20 ft Male Pipe Rigid Both Ends.
-20°F to +300/350°F | Hot Tar | Wax | Glue
SHA1225
High Temperature Spray Hose Assembly
1/2" x 25 ft Male Pipe Rigid Both Ends.
-20°F to +300/350°F | Hot Tar | Wax | Glue
Spray Tips and Adapters
Brass Reducer Adapter 3/8" Female Pipe to 1/4" Female Pipe
SW-3
Replacement Reducer Adapter.
3/8" (F) to 1/4" (F) reducer
Larger Image
Brass elbow adapter 45 degree
SW-4
Replacement Elbow Adapter.
1/4" (F) to 1/4" (M) elbow
Larger Image
Brass Spray Tip 1/4"
NZ1504
Replacement Spray Tip
1/4" Male NPT Inlet
15° Spray Angle
Size 4
Larger Image | More Details
Brass Spray Tip 1/4"
NZ2504
Replacement Spray Tip
1/4" Male NPT Inlet
25° Spray Angle
Size 4
Larger Image | More Details
Brass Spray Tip 1/4"
NZ4004
Replacement Spray Tip
1/4" Male NPT Inlet
40° Spray Angle
Size 4
Larger Image | More Details
Spray Tip Manifolds
Aluminum 2 in 1 Manifold D3408
Spray Tip 2 in 1 Manifold
Inlet: 1/2" Female Pipe
Outlet: 1/4" Female Pipe
Material: Aluminum
More Details
Aluminum 3 in 1 Manifold D3408
Spray Tip 3 in 1 Manifold
Inlet: 1/2" Female Pipe
Outlet: 1/4" Female Pipe
Material: Aluminum
More Details
Shut Off Valves
Brass Ball Valve 1/2" Female Pipe FBV50
Brass Ball Valve
1/2" Female Pipe Both Ends
Non-Domestic
More Details
Stainless Steel Ball Valve SSBV50
Optional Stainless Steel Ball Valve
1/2" Female Pipe Both Ends
More Details
Air Quick Coupler Disconnects
Quick Coupler ST Series Straight Through Brass Coupler 1/2 Body to 1/2 Female Pipe BST-4
Quick Coupler ST Series
Body: Brass
Female 1/2" Body
Female 1/2" Pipe Thread
More Details
Quick Coupler ST Series Straight Through Brass Coupler 1/2 Body to 1/2 Male Pipe BST-4M
Quick Coupler ST Series
Body: Brass
Female 1/2" Body
Male 1/2" Pipe Thread
More Details
Quick Coupler Nipple ST Series Straight Through Brass Coupler 1/2 Body to 1/2 Female Pipe BST-N4
Quick Coupler Nipple ST Series
Body: Brass
Male 1/2" Body
Female 1/2" Pipe Thread
More Details
Quick Coupler Nipple ST Series Straight Through Brass Coupler 1/2 Body to 1/2 Male Pipe BST-N4M
Quick Coupler Nipple ST Series
Body: Brass
Male 1/2" Body
Male 1/2" Pipe Thread
More Details
Air Hose Assemblies
3/8" Coil Air Hose Assembly PU3815
Polyurethane Self Storing Hose Assembly
3/8" Hose I.D.
3/8" Male NPT Both Ends
Length: 15 feet
More Details
3/8" Coil Air Hose Assembly PU3820
Polyurethane Self Storing Hose Assembly
3/8" Hose I.D.
3/8" Male NPT Both Ends
Length: 20 feet
More Details
3/8" Coil Air Hose Assembly PU3825
Polyurethane Self Storing Hose Assembly
3/8" Hose I.D.
3/8" Male NPT Both Ends
Length: 25 feet
More Details
3/8" Coil Air Hose Assembly PU3850
Polyurethane Self Storing Hose Assembly
3/8" Hose I.D.
3/8" Male NPT Both Ends
Length: 50 feet
More Details
Pipe Reducer Adapter from 1/2" Male Npt to 3/8" Female NPT 0102
Steel Reducer Adapter Connects 3/8" Air Hose to 1/2" Female Quick Coupler Connector
3/8" Female NPT to 1/2" Male NPT
More Details
Prices subject to change without notice. Minimum order is $130
